Silver Lake Built

Residential on Redcliff Street

Grading plans and stormwater management for steep hillside residence.

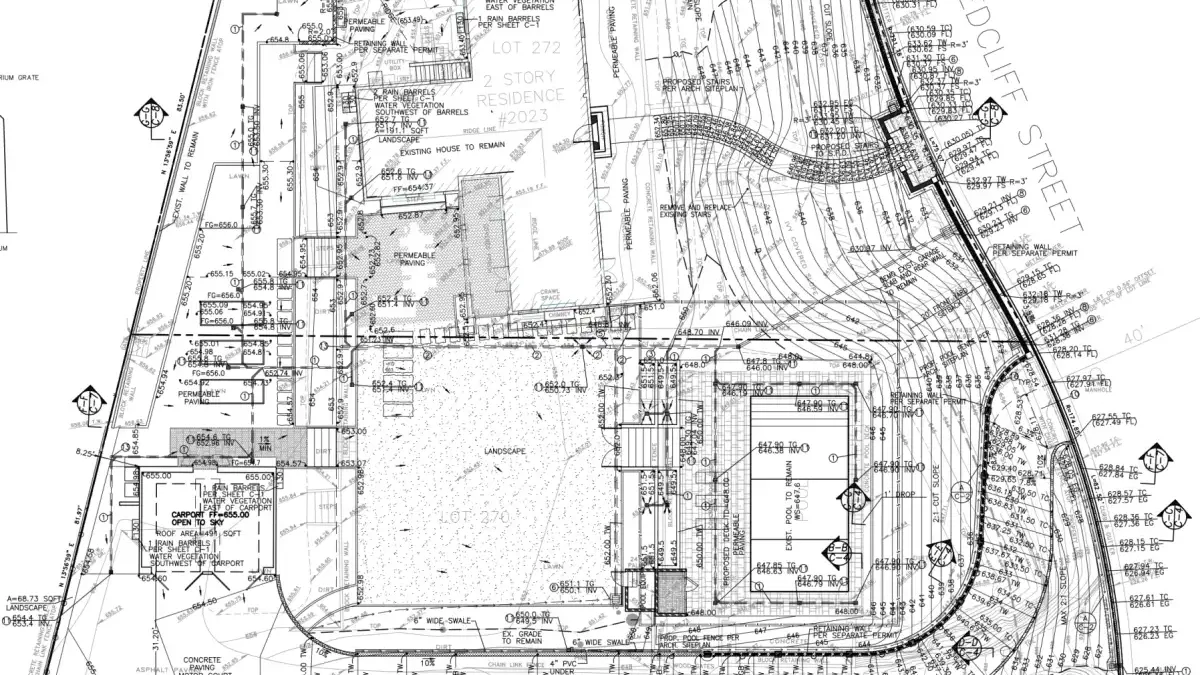

Grading and drainage plan for Silver Lake residential project showing contour lines, retaining walls, rain barrels, swales, and proposed structures

Location

Silver Lake

Services

Status

Built

Project Overview

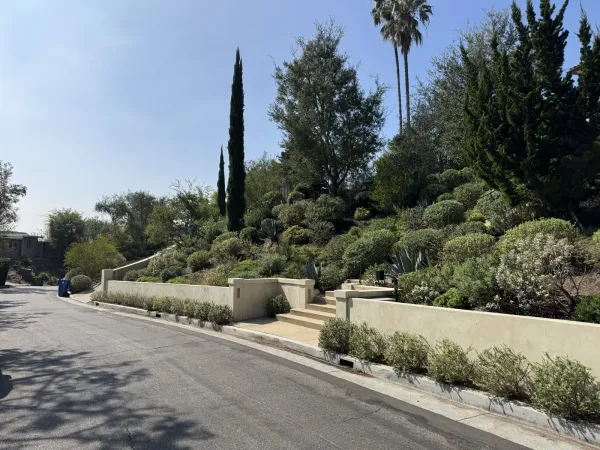

New driveway entrance on steep hillside using a single retaining wall and curb daylight on the street side. The design maintained 2:1 maximum slopes on the street up to the driveway, and another 2:1 slope from the retaining wall up to the existing pool area.

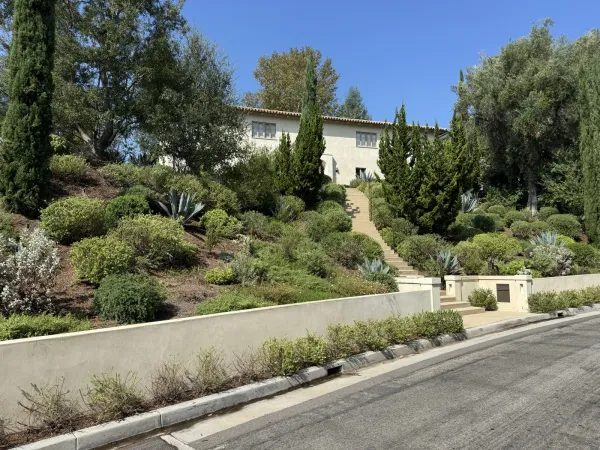

The entire front yard received new 2:1 cut slope grading with a new front entrance staircase from the street level leading up to the main house entrance. The existing residence was to remain and was later remodeled.

A new driveway leads to a carport in the rear of the property with rain barrels providing low impact development for stormwater management. The entire site was collected into downspouts and area drains, all piped to the street.

Site Photos

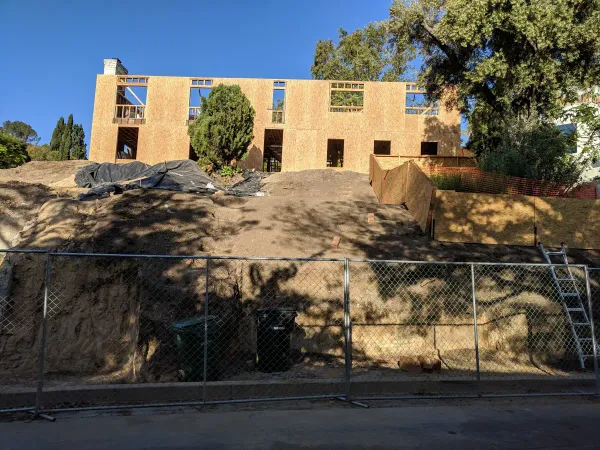

Two-story residential house under construction with OSB sheathing sits atop a steep, newly graded dirt slope with erosion control measures

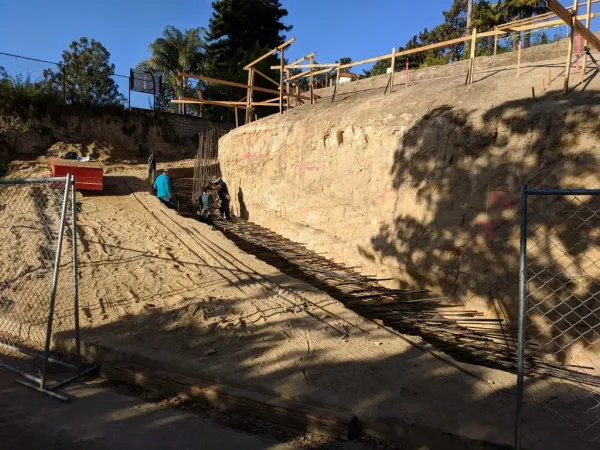

Construction site showing slope grading and foundational work for a retaining wall on a steep hillside with rebar reinforcement installation

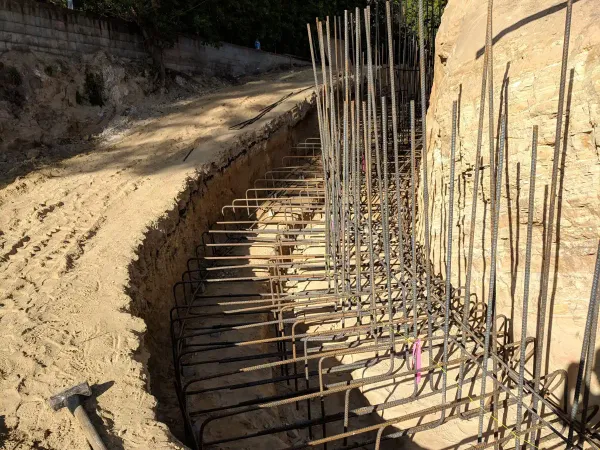

Hillside construction site featuring deep excavation and grading for a curved retaining wall with steel rebar reinforcement

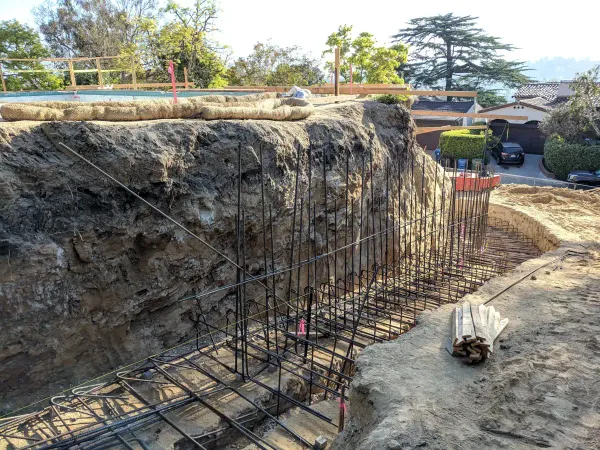

Excavation and site grading for a residential retaining wall with large steel rebar cage against a steep earthen slope

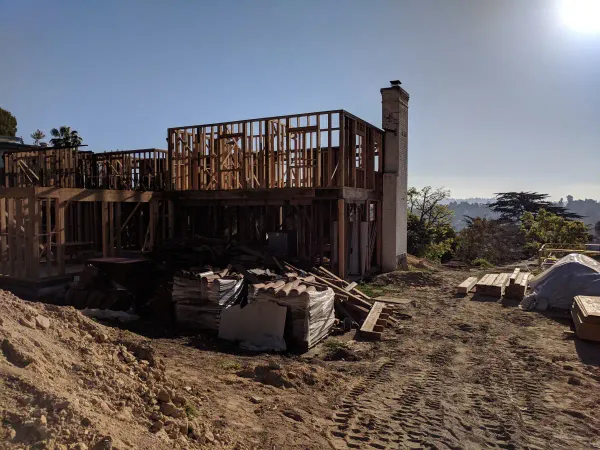

Construction site for a residential home on a steep hillside lot featuring grading and excavation for a future driveway and entrance

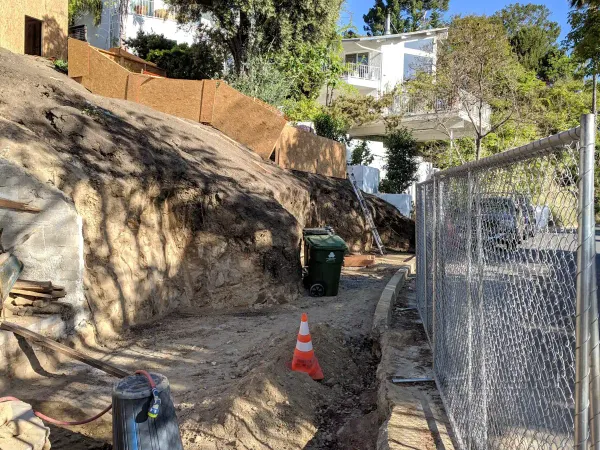

Residential hillside construction site with steep dirt grading supported by plywood retaining walls, driveway entrance from street

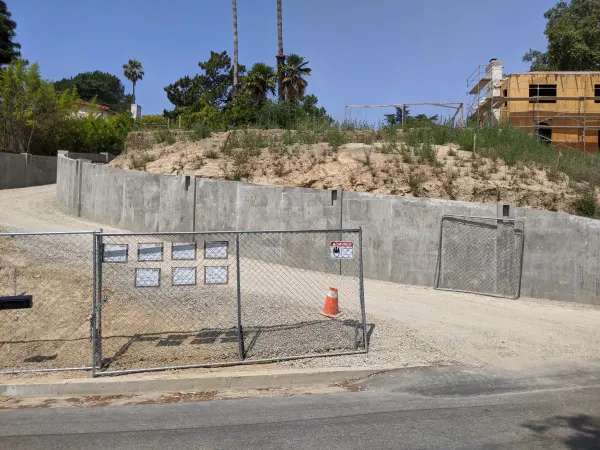

A construction site on a hillside featuring a large, multi-section concrete retaining wall with a dirt and gravel driveway winding up the slope

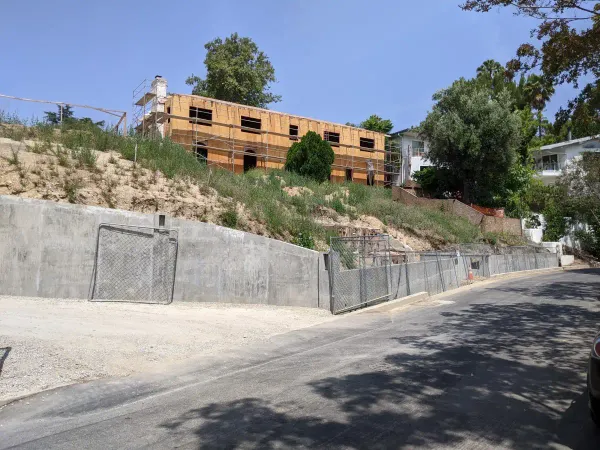

A residential hillside construction project showing a large concrete retaining wall, sloped grading with protective fencing, and a wood-framed house under construction

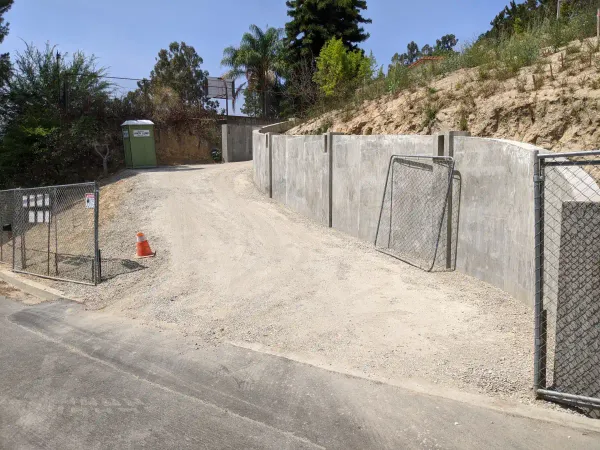

A construction site featuring a newly built, curved concrete retaining wall that runs along a graded dirt and gravel driveway leading up a steep slope

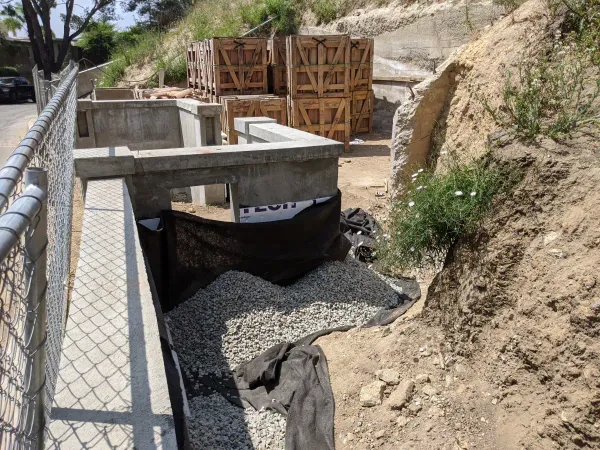

A construction site with new concrete retaining wall and crushed gravel driveway bed lined with black landscape fabric on a steep graded slope

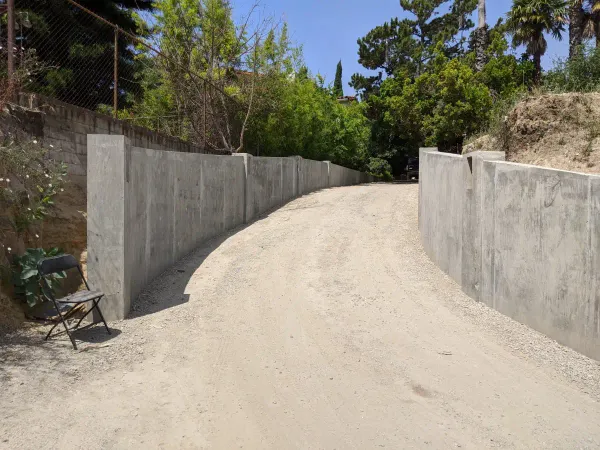

A graded dirt driveway under construction featuring a gentle upward slope and newly installed concrete retaining walls on both sides

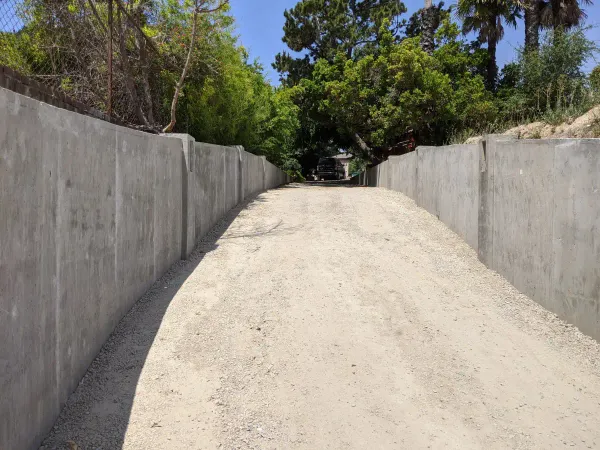

A long, sloped gravel driveway under construction bordered by tall poured concrete retaining walls on a residential hillside
