Grading Plans for Studio City Properties
Studio City sits in the San Fernando Valley with both flat lots and hillside terrain. Properties near Ventura Boulevard and the main commercial areas tend to be flatter, while areas closer to the Hollywood Hills have more slope. Whether you are building a new house, adding an ADU, or doing a significant remodel, you need engineering that accounts for your specific site conditions.
We have worked on grading and drainage projects throughout Studio City, from flat lots near the Chandler Boulevard area to steep hillside sites near the ridgeline. We know how LA City LADBS reviews these projects and what makes a plan move through approval efficiently.
LA City LADBS Jurisdiction
Studio City falls under Los Angeles City Building and Safety (LADBS), not LA County. This means your project permits through the City of Los Angeles. LADBS has specific requirements for grading and drainage that must be addressed in your submittal. We put together grading plans that meet LADBS standards for Studio City properties. We know what the plan check reviewers look for and how to address common deficiencies before they delay your project.
Flat Lot Drainage
Many Studio City properties near Ventura Boulevard and the main commercial areas have minimal slope. These lots need drainage design that handles stormwater without creating puddles or sending water to neighboring properties. On flat lots, we typically design concrete swales that slope toward the street or approved outlet, area drains at low points to collect water, and proper grading around foundations to keep water away from the structure. For larger lots or projects with significant new impervious surface, LA City may require downstream analysis to ensure your project does not overwhelm the existing drainage system.
Hillside Properties in the Hollywood Hills
Studio City has hillside areas where properties feature significant grade changes from the street to the rear. Slopes of 20% or greater trigger LA City hillside ordinance requirements. These properties need detailed grading plans that show proposed contours, slope stabilization, retaining wall design and footings, driveway grades that meet city standards, and drainage patterns showing how water leaves the site. Hillside projects in Studio City require more engineering documentation than flat lots. The grading plan must account for cut slopes, fill slopes, and how water behaves on the site both during construction and after. Retaining walls are typically needed to create level building pads. We put together the civil engineering documentation that LADBS wants to see: grading plans, drainage design, erosion control, and when needed, excavation plans with shoring details.
Low Impact Development in Studio City
LA City encourages Low Impact Development (LID) features for stormwater management. LID features like rain gardens and permeable paving help water soak into the ground rather than running off to the street. This reduces the burden on the municipal storm drain system and is especially valuable on hillside properties where runoff can cause erosion. A recent Studio City project on Wrightwood Court included two rain gardens designed to handle roof runoff from different sections of the house. The rain gardens were sized based on the contributing roof area and are connected to the underground drainage system. Permeable paving was used for the driveway to further reduce runoff. These LID features satisfy LA City requirements while being practical for the site.
Below-Street-Grade Construction
LA City requires that any construction below street grade must outlet stormwater to the street. On hillside lots in Studio City, this commonly affects basement lightwells that collect groundwater and rain runoff, lower-level living spaces where the grade naturally creates below-street conditions, and underground parking or storage areas that sit below the street flowline. When gravity cannot drain water to the street, we design stormwater sump pump systems that collect and pump water up to street level. We size these systems based on your specific site conditions and LA City requirements.
ADU Projects in Studio City
ADUs are common throughout Studio City, and the drainage requirements for these projects depend on your lot slope and the size of the addition. Even on flat lots, adding an ADU means more impervious surface that drainage must account for. For ADU projects, we typically put together a grading plan showing how water moves across the site after construction, drainage improvements if the addition creates more than minor runoff, and erosion control if there is any slope or demolition involved. LA City has specific requirements for ADU drainage, and we make sure your submittal addresses them so you do not face delays during permit review.
Working With Homeowners and Architects
We are used to working alongside architects and directly with homeowners. Studio City projects often involve thoughtful design to maximize buildable area on challenging sites. We bring the engineering perspective that helps those projects move from design through permits without unexpected delays. We can explain the technical stuff in plain terms and make sure your project has the documentation it needs for LADBS approval.
Why Work With B+W Engineering in Studio City?
- We have worked on projects throughout Studio City
- We know LADBS requirements for both flat lots and hillside
- We design LID features like rain gardens and permeable paving
- We design drainage for below-street-grade construction
- We understand the terrain variations from flat to steep
- We put together documentation that moves through plan check efficiently
- We are available to answer questions throughout your project
Frequently Asked Questions
Portfolio Preview
Your Studio City Project
Call us or request a consultation.
Project Examples in Studio City

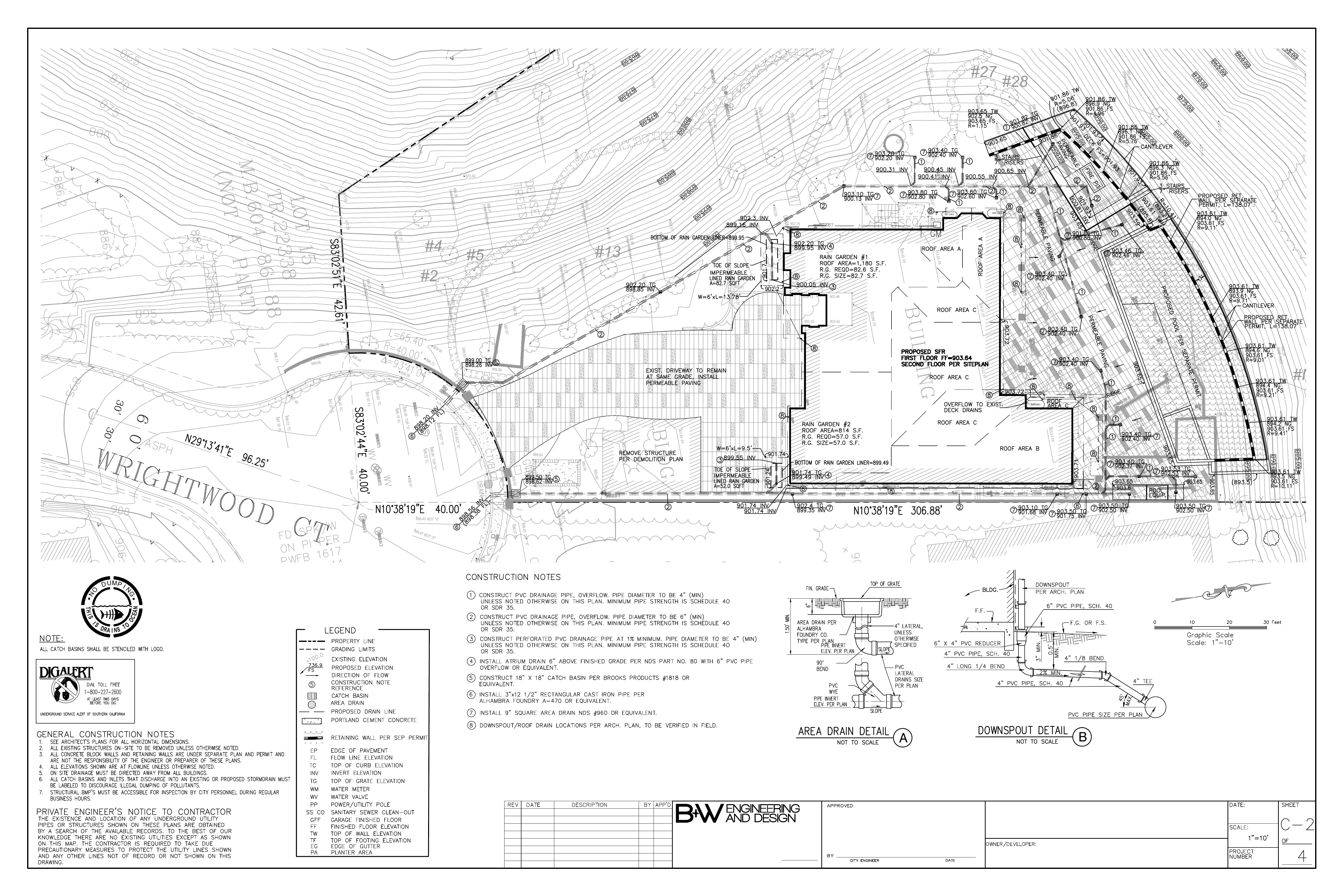

Studio City Grading Plan - Proposed single-family residence on Wrightwood Court showing contours, rain gardens, permeable paving, catch basins, and drainage improvements on hillside property

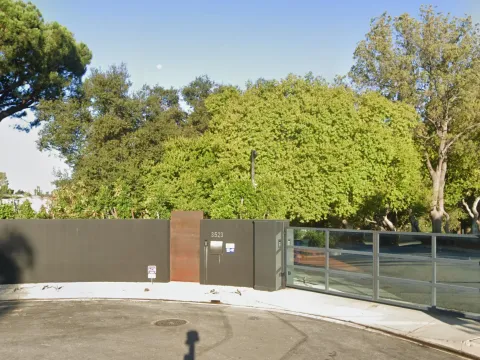

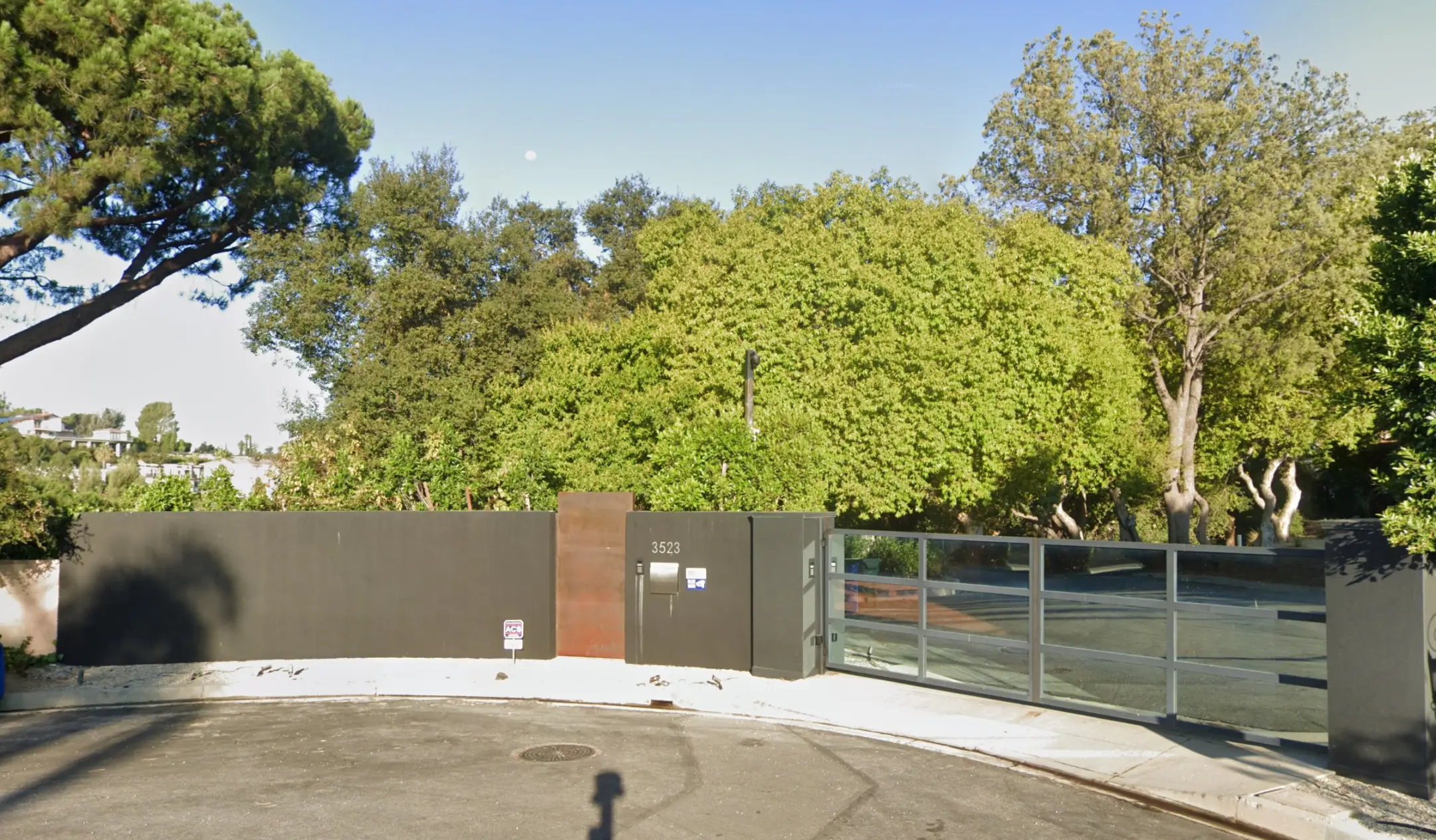

Studio City Completed Project - Modern residential entrance with charcoal grey perimeter wall, Corten steel accent, security gate, and mature landscaping
Planning a project in Studio City? Give us a call to discuss your grading and drainage options.
