Second Wapello Street Drainage Plan - Existing Conditions and Proposed Design

We received the retainer on a Wapello Street property in Altadena with the site plan and survey already in hand. This was our second project on this street, so we had some familiarity with the area. Looking at the existing topography, we could see the old house had been excavated out in the middle of the lot with the garage sitting at the rear of the downslope. The existing pool would remain part of the design.

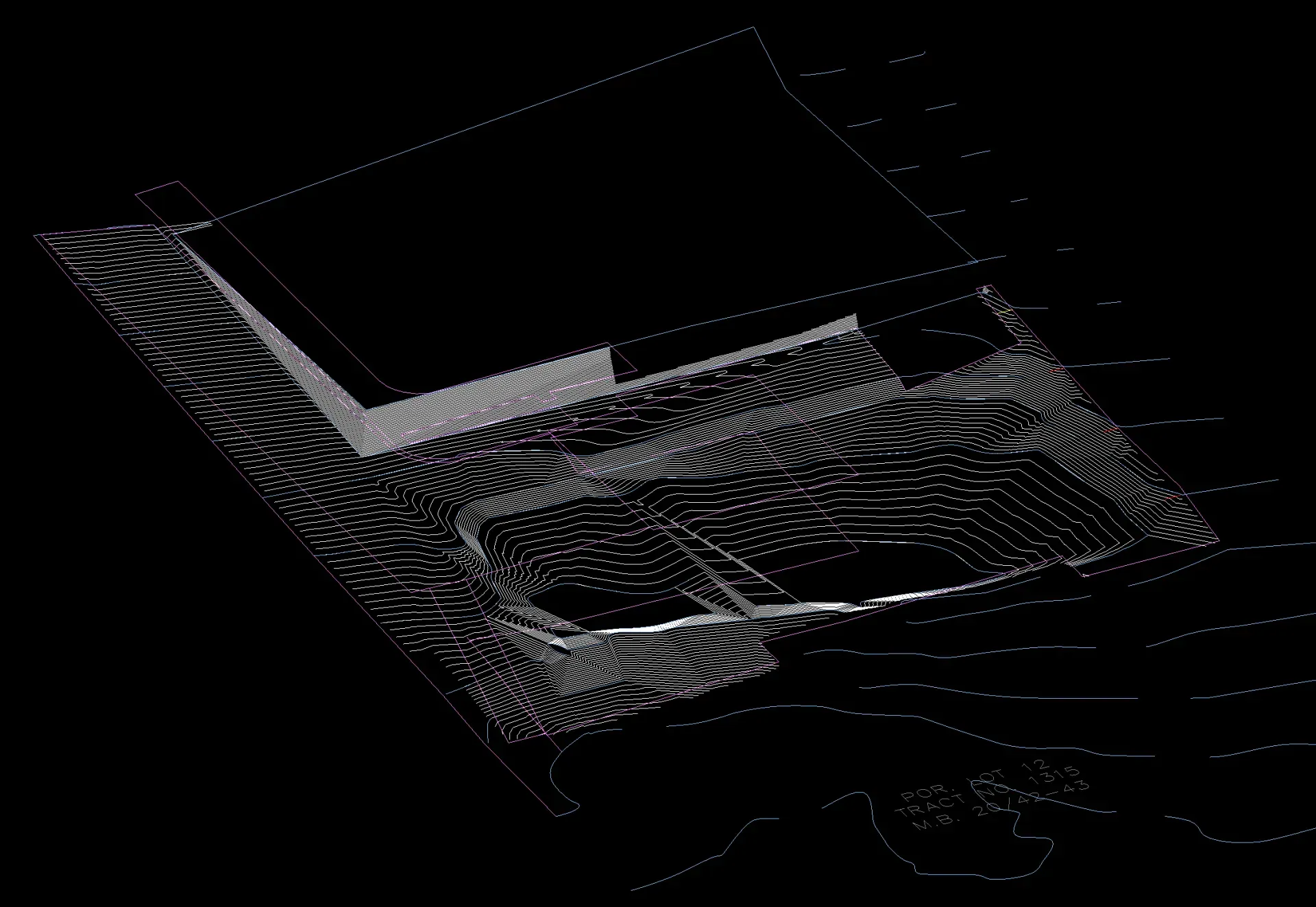

Existing Conditions

The site is downsloping, which always adds complexity to drainage planning. We needed to understand exactly where the water was going to flow before we could propose any changes. The excavated house pad in the center created a bowl effect, and the existing pool at the front meant we were going to drain backwards.

The existing conditions showed us the slope running from front to rear, with the garage sitting below the main grade. We had to figure out a proposed drainage pattern that worked with what was already there.

Proposed Design

The proposed house sits tighter to the street grade but still below it, which meant we had to drop the driveway. The existing driveway was typically 10%, which we often see. But due to the new house finished floor elevation, we only needed 2%. That 2% slope created a retaining wall along the neighbor’s property line.

We were able to match the house and deck into the existing pool deck, which helped keep the transitions clean. From there, we brought a flowline from the front to the driveway and let sheet gravity flow down the steps to the rear of the property. All drainage sheet flows to two plastic lined rain gardens that handle the stormwater on site.

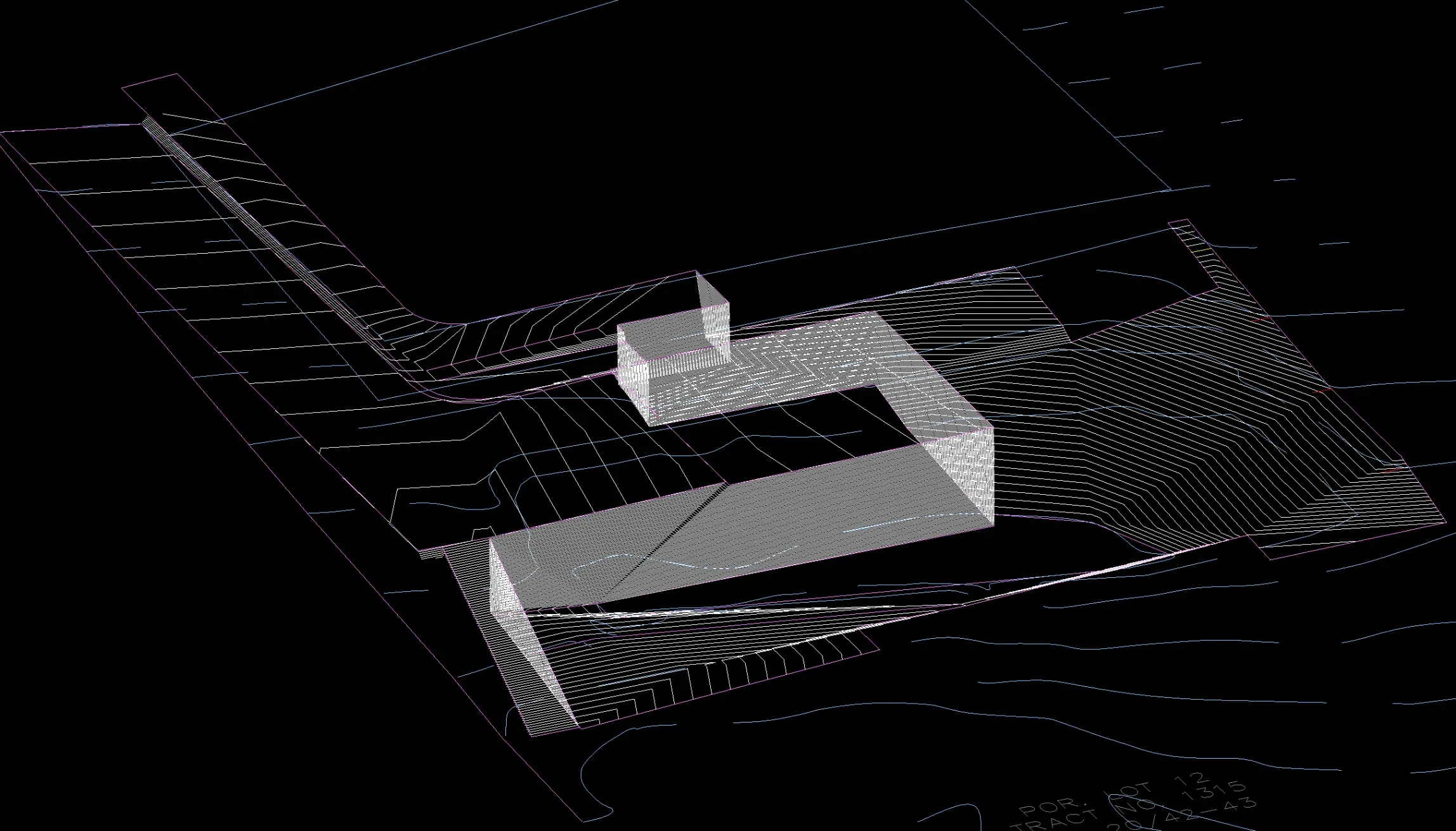

The proposed model shows how we threaded the drainage through the existing constraints. The house sits on a crawlspace, the garage is on grade, and the rear deck sits above existing grade. The rear yard grade remains similar to what was there before.

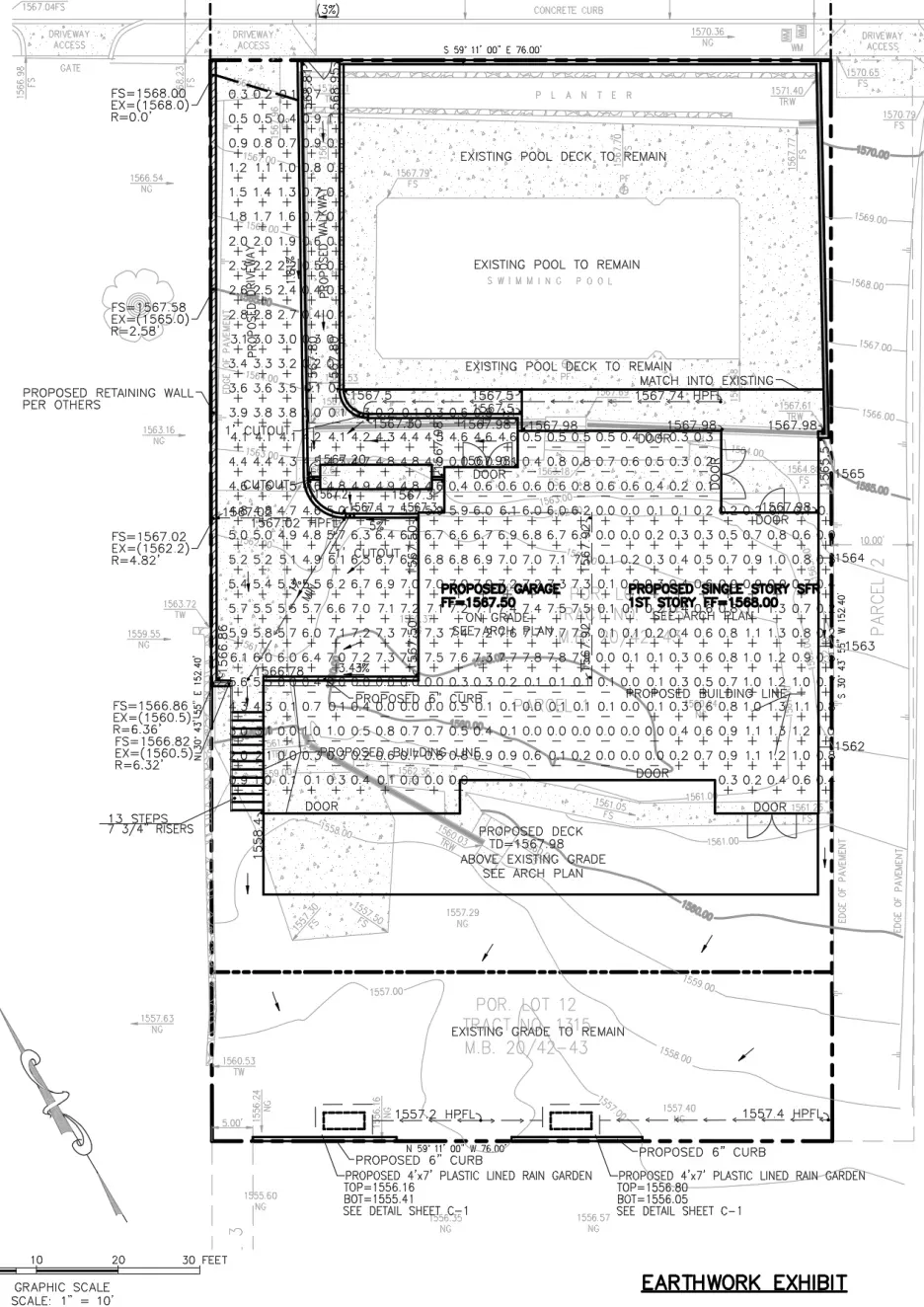

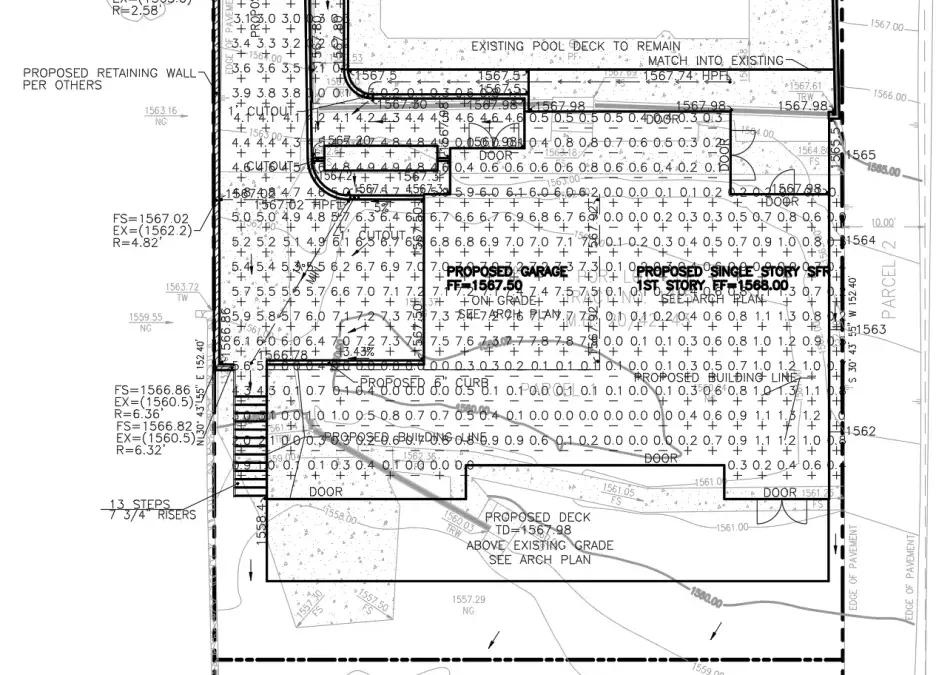

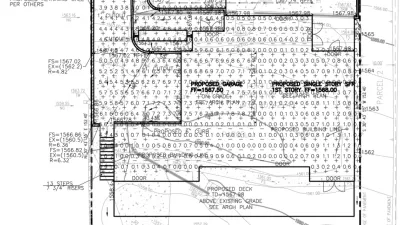

Earthwork Exhibit

The final design shows the earthwork cut and fill numbers. The overall site layout remains similar to existing conditions, but the garage is now on grade and the house has a crawlspace. The rear deck sits above existing grade, and the rain gardens handle the drainage without needing a sump pump or other mechanical systems.

For this Altadena fire rebuild, the two rain gardens helped keep more stormwater onsite than pre-fire conditions. This storage based approach meant we did not need expensive stormwater sump pumps, which should save the client significant construction costs.
